How to assemble the Fender American Vintage 62 Jazz Bass Wiring kit – Part 2

This article is a continuation from part 1. This series of articles is specifically concentrating on the Fender American Vintage ’62 Jazz Bass Complete Wiring Kit. If you have bought or are thinking about buying this kit from Best Bass Gear and have questions, we can help. Just ask.

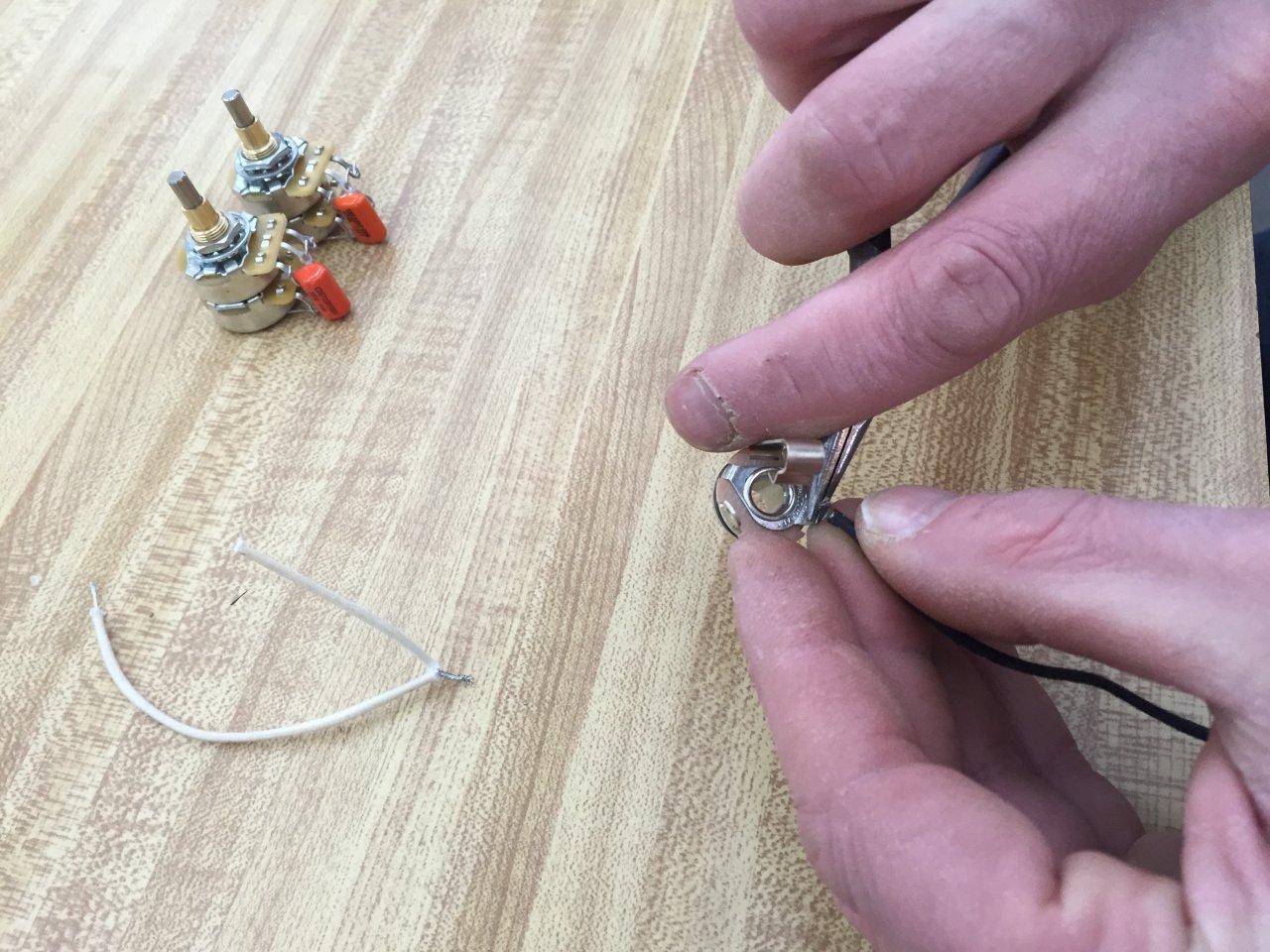

Below: One hand holding pliers with twisted wire end, other hand holding black wire. Pliers are used to loop and crimp on to the ground connector.

5516

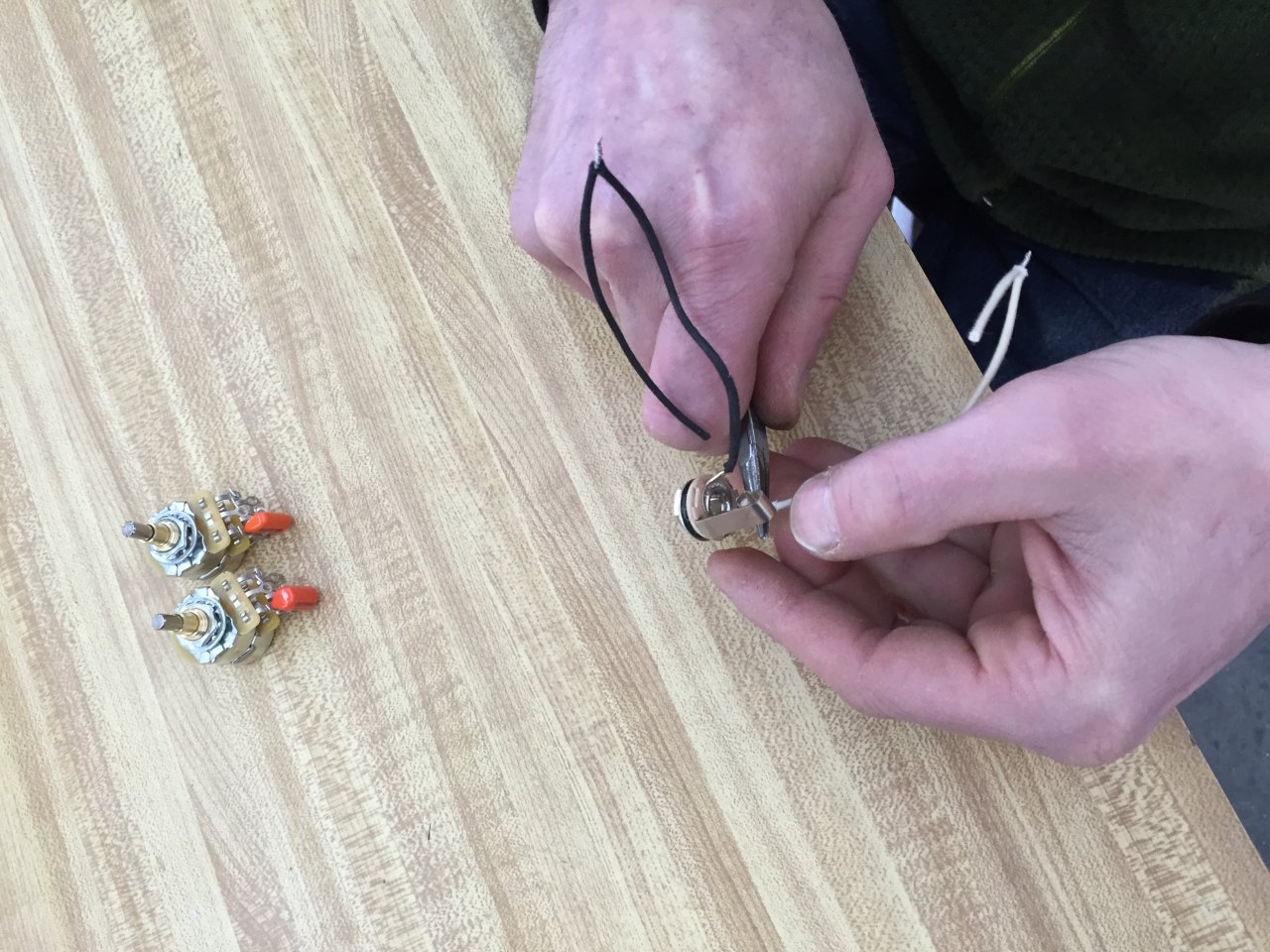

Below: Crimping the white wire on to the positive connection of the output jack.

5522

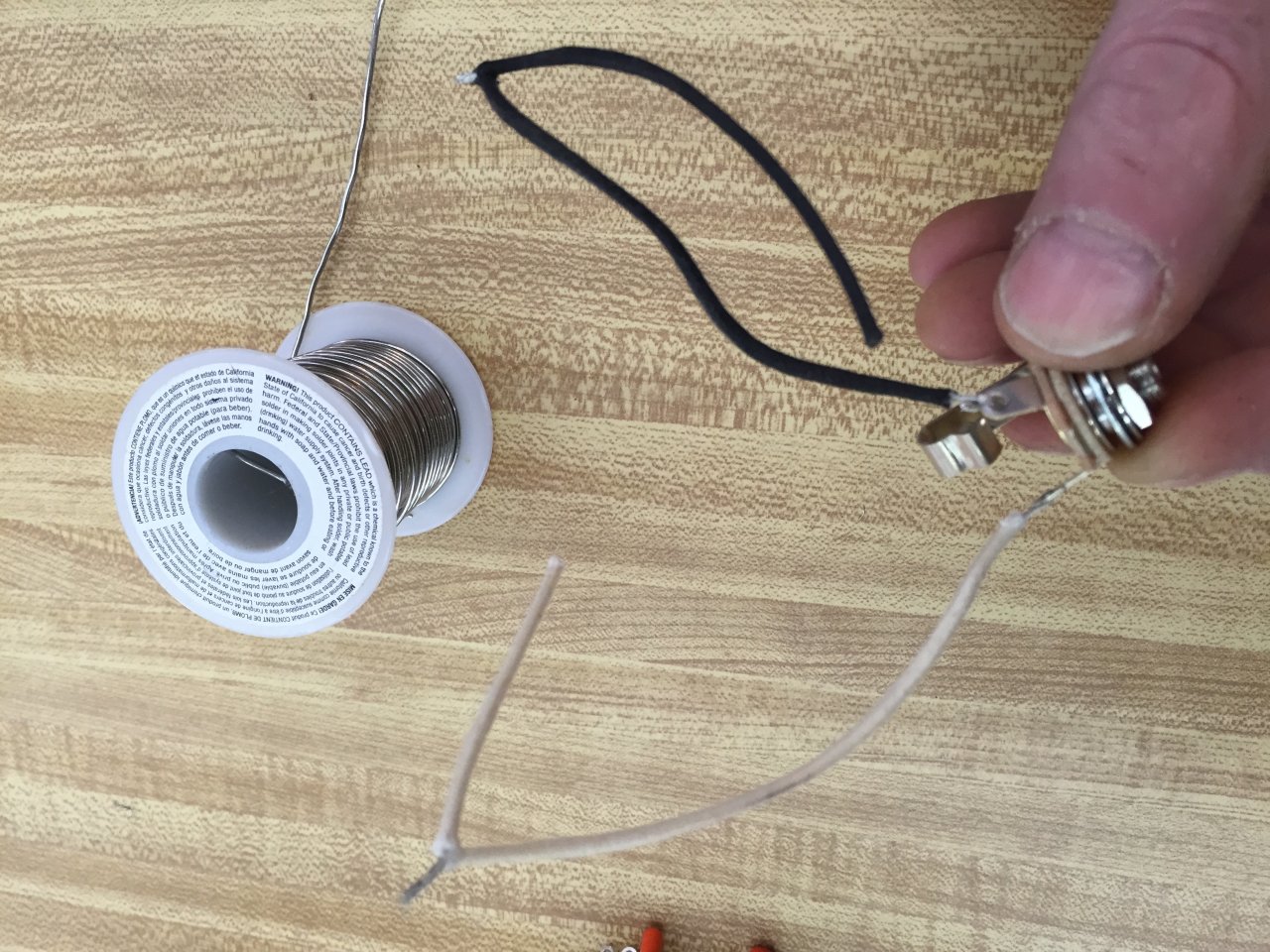

Below: Crimping completed.

5525

Below: Heating up some solder. Note: the solder gauge thickness being used is 18 gauge.

5527

Below: Soldering the signal connection of the output jack.

5528

Below: Soldering the ground connection of the output jack.

5531

Below: Soldering completed.

5532

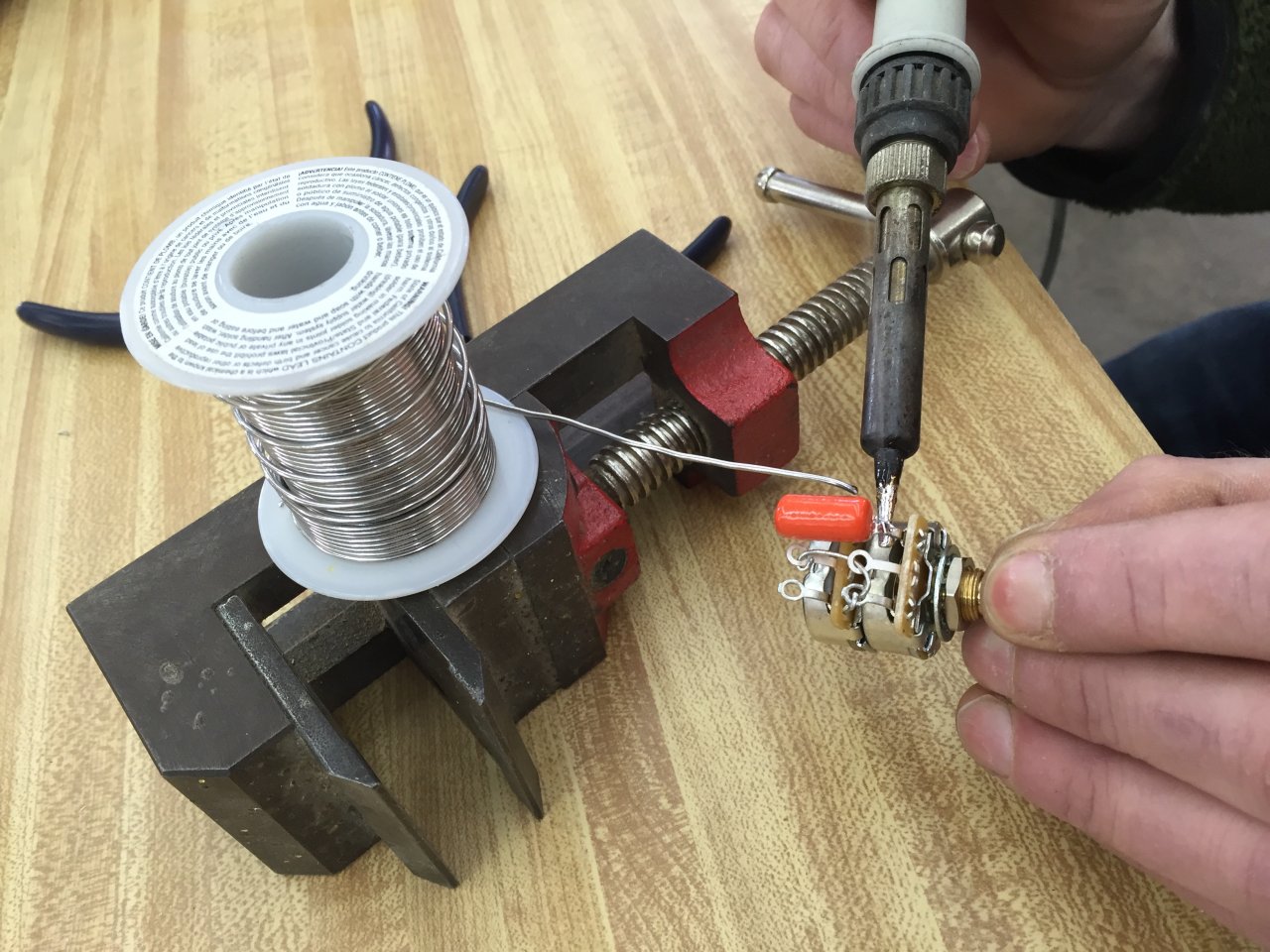

Below: Soldering the capacitor to the lower right terminal.

5533

Below: Soldering the lower left hand terminal.

5534

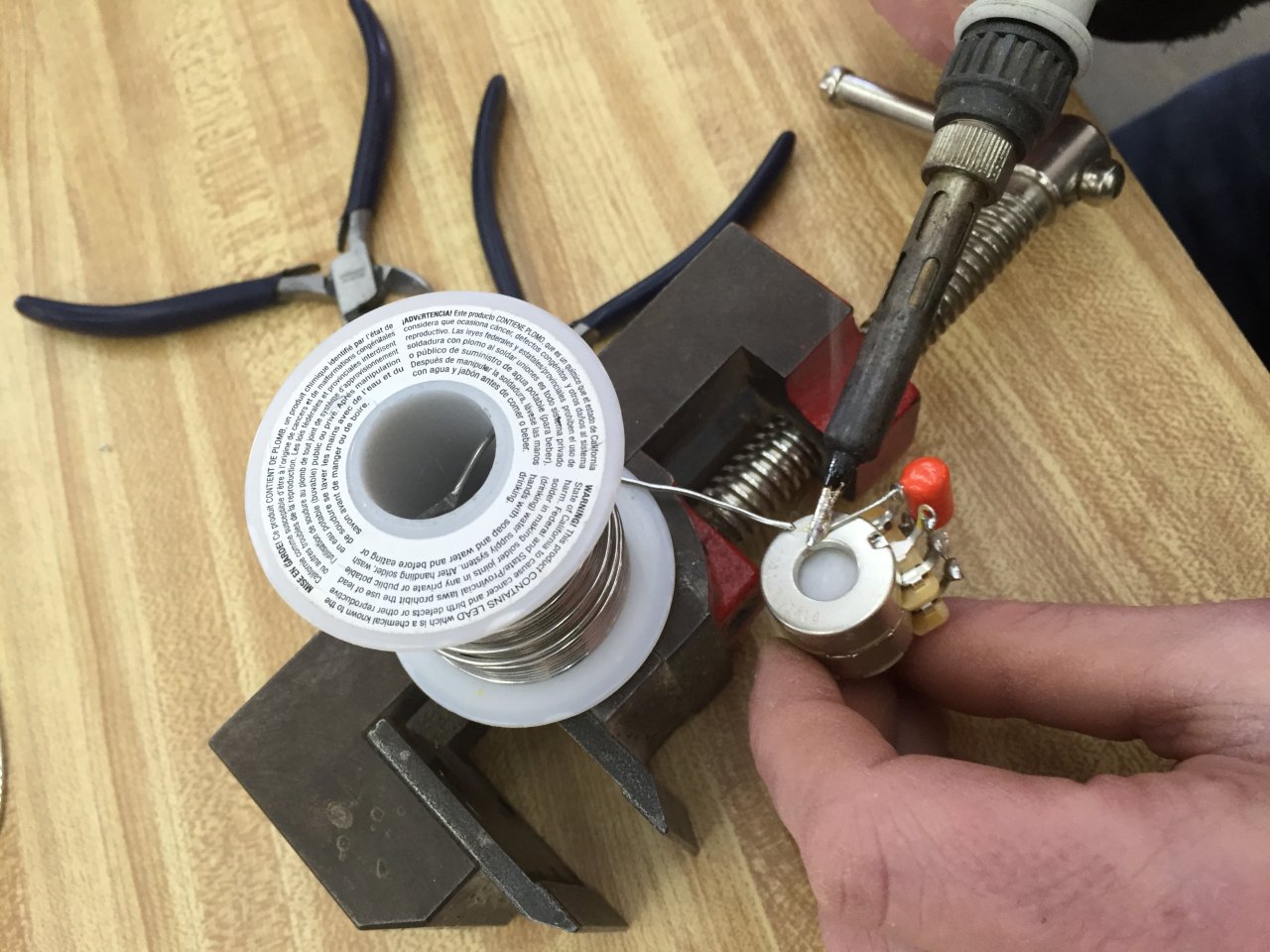

Below: Soldering the capacitor lead to the back of the potentiometer.

5537

Below: Soldering work is completed. Note: Solder connection in center top is not completely filled with solder to allow for a pickup output lead to go through.

5544
