How to build a bass guitar – Neck pocket template fabrication part 2

In part 2 with our neck pocket template fabrication, we’re now performing a rough cut and removing the surrounding material with a bandsaw. The photos below shows how it’s done:

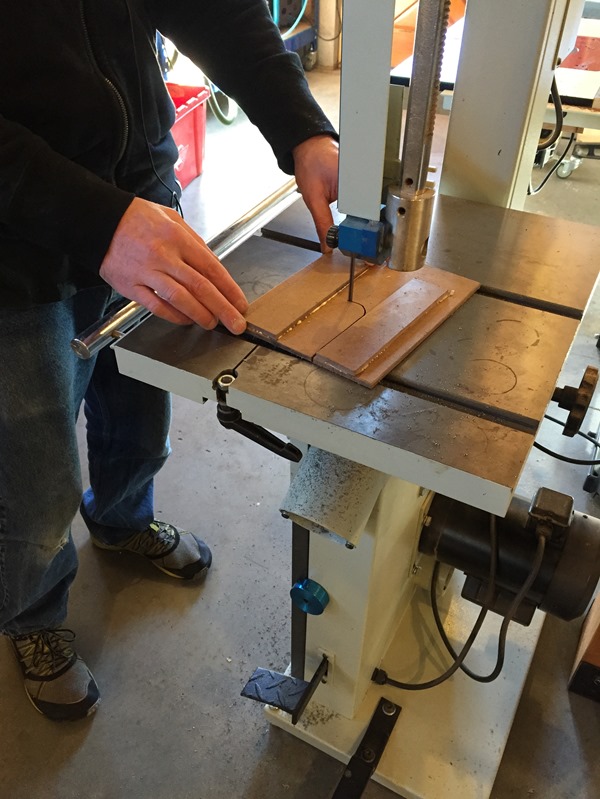

IMG_1590

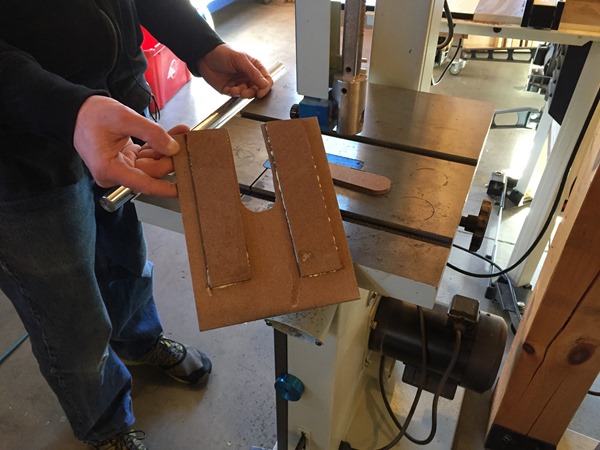

IMG_1594

Next up, the bottom hardboard piece has its excess middle portion removed flush to the edges of where the glued pieces on top meet:

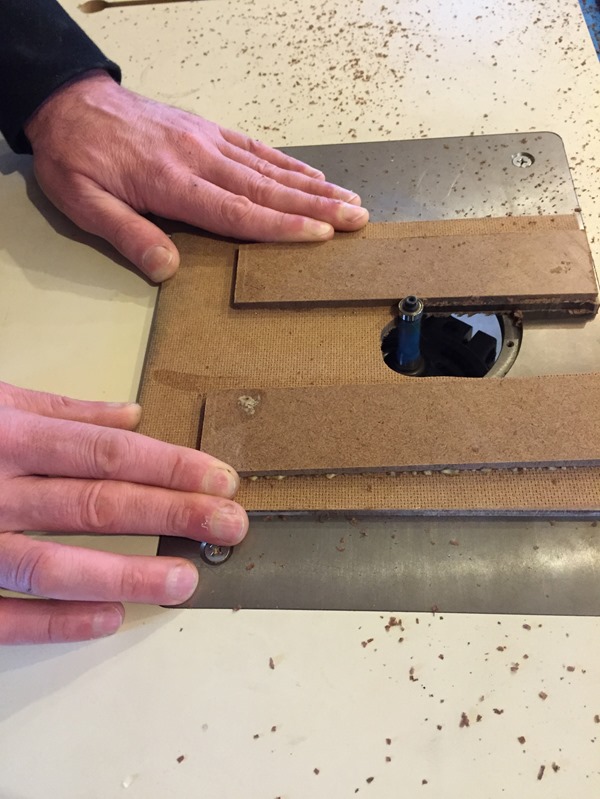

IMG_1607

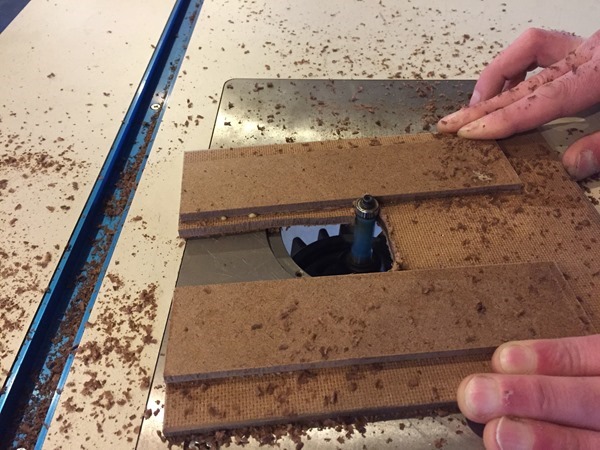

IMG_1610

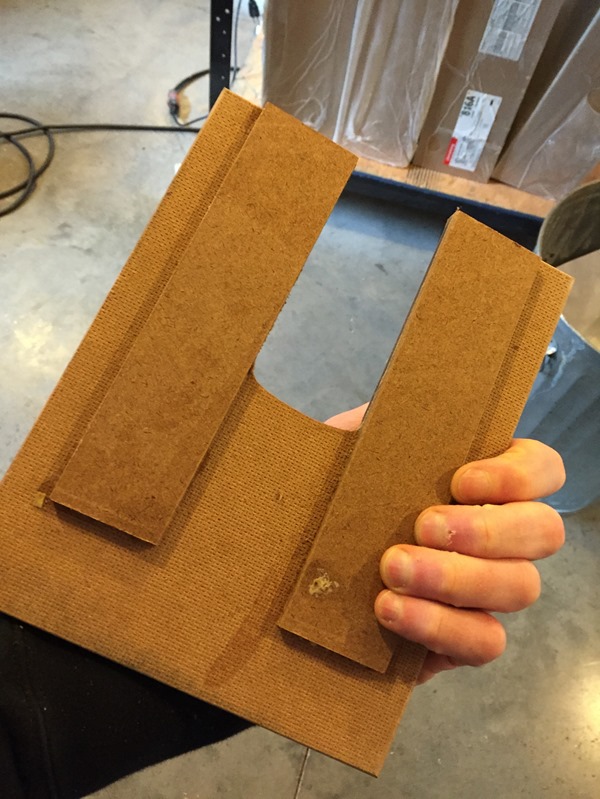

IMG_1616

Above is the finished cut shown, however, this is not the final template, as the heel end will still need to be matched up to the actual heel of the neck for proper shape and fit.

Got questions about this fabrication process? Post a comment or two and we’ll answer your questions as best we can.

Where are the rest of the build steps?
You can view them all here.

Next stepShop bass partsIn-stock parts usually ship within 1 business day.
Shop now

1 thought on “How to build a bass guitar – Neck pocket template fabrication part 2”

  1. Thanks for this great help! I will be fitting three short scale Tele style necks to Tele bodies, and I don’t have a band saw…I believe I’ll need a bearing bit for my router, so any advise on bit selection will be most welcome…
