How to assemble the Fender American Vintage 62 Jazz Bass Wiring kit – Part 4

This is a continuation from part 3.

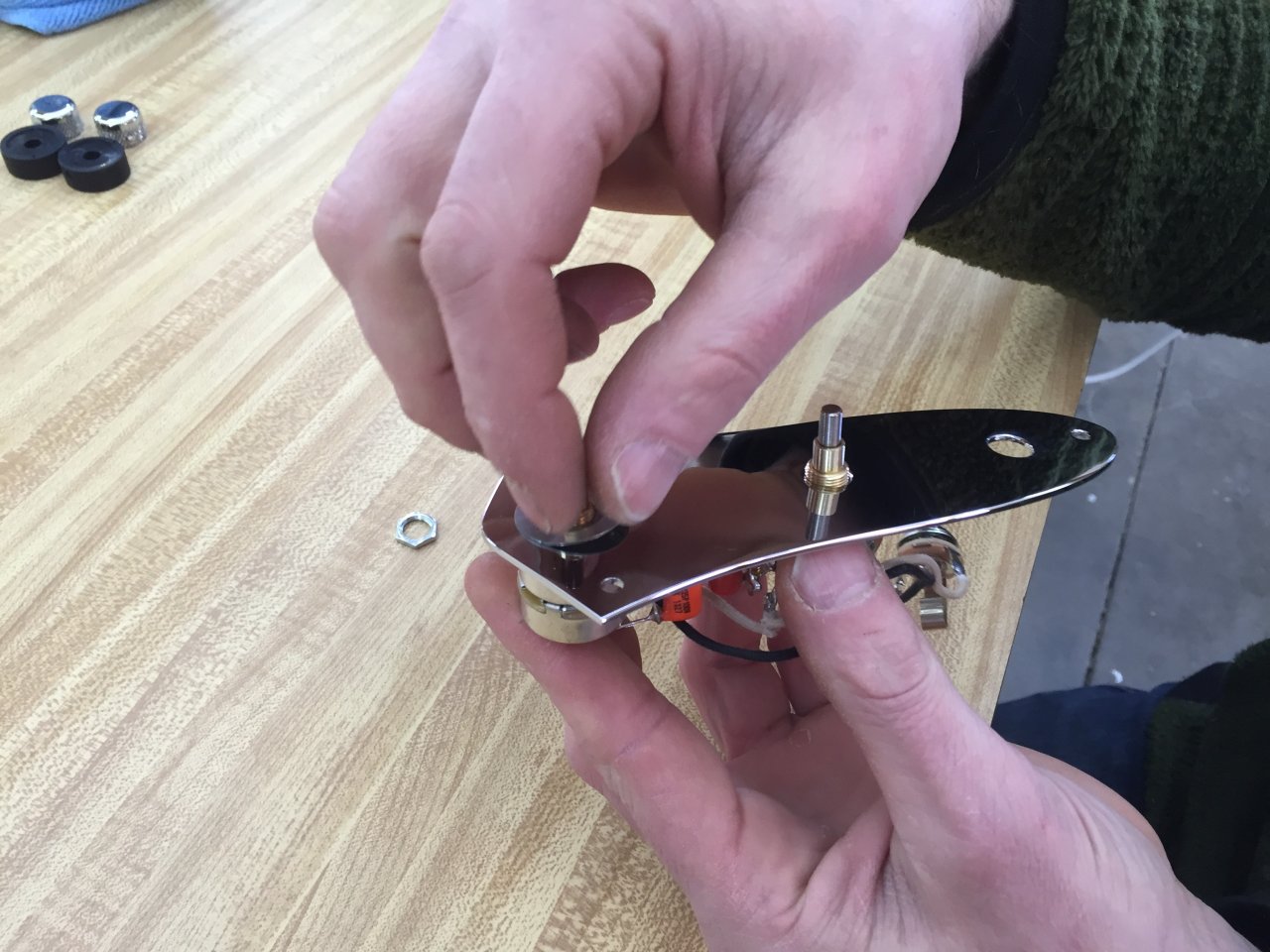

Below: Potentiometers being attached to the control plate, with washer being placed.

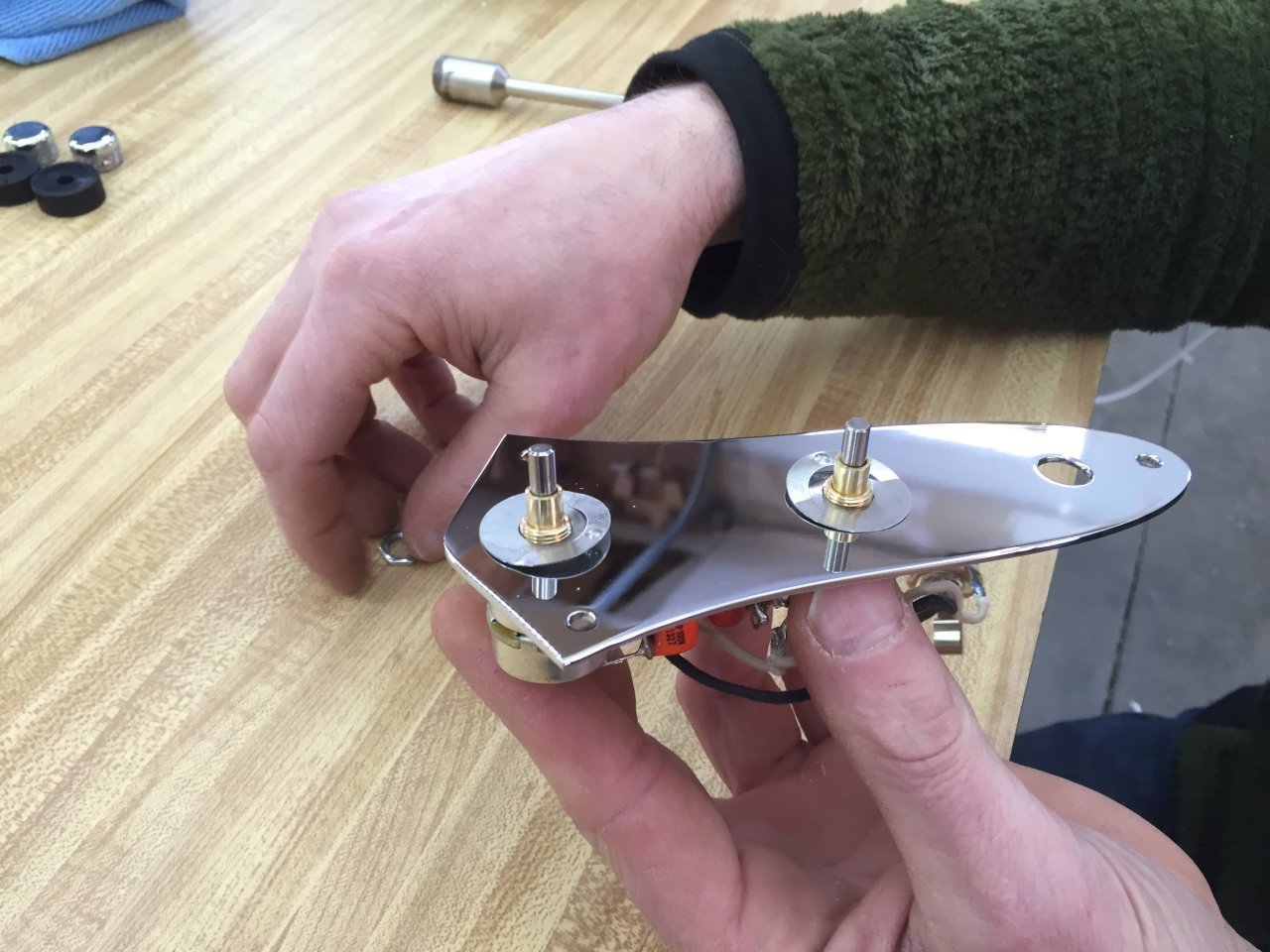

Below: Washers for both pots placed.

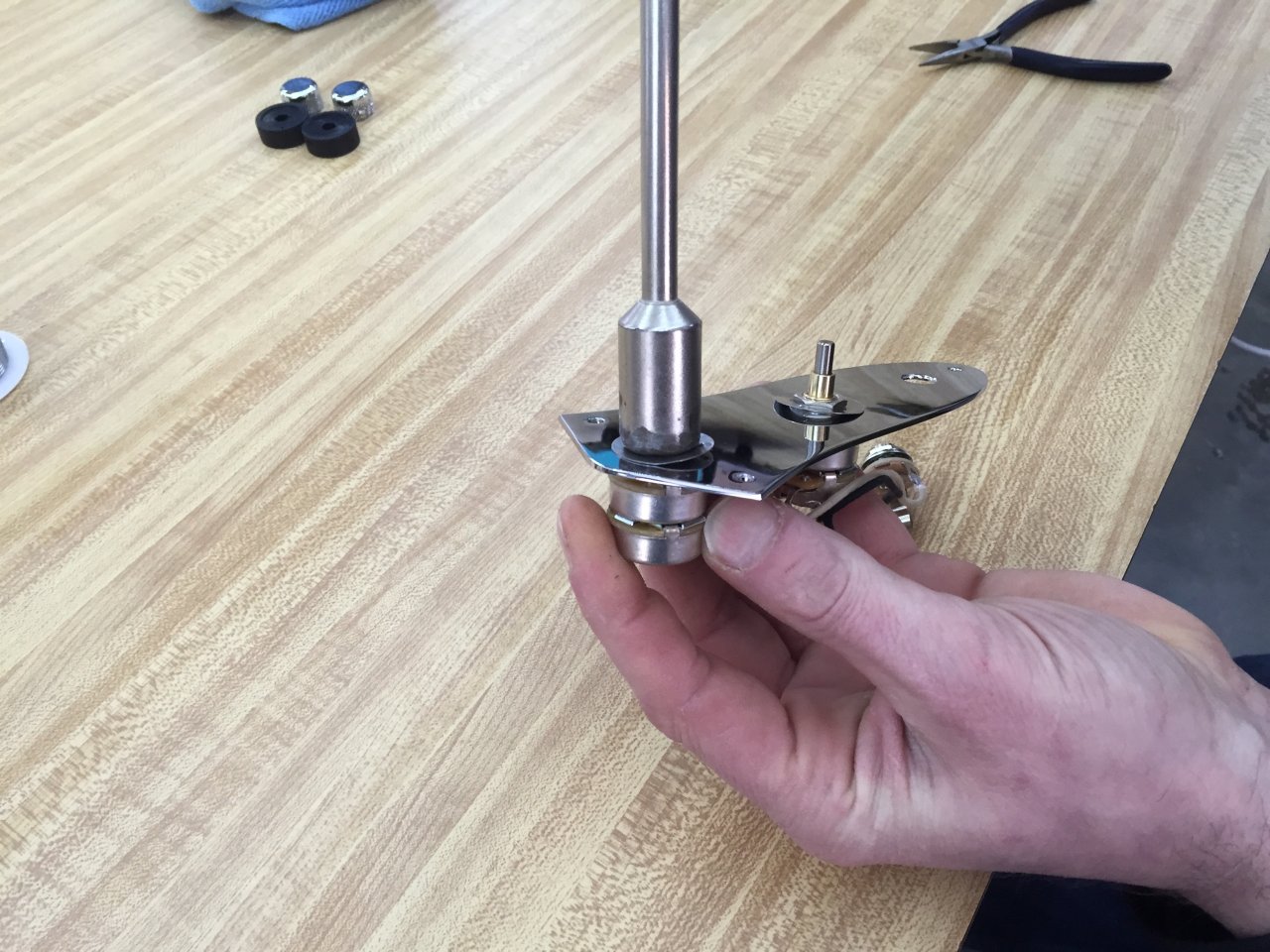

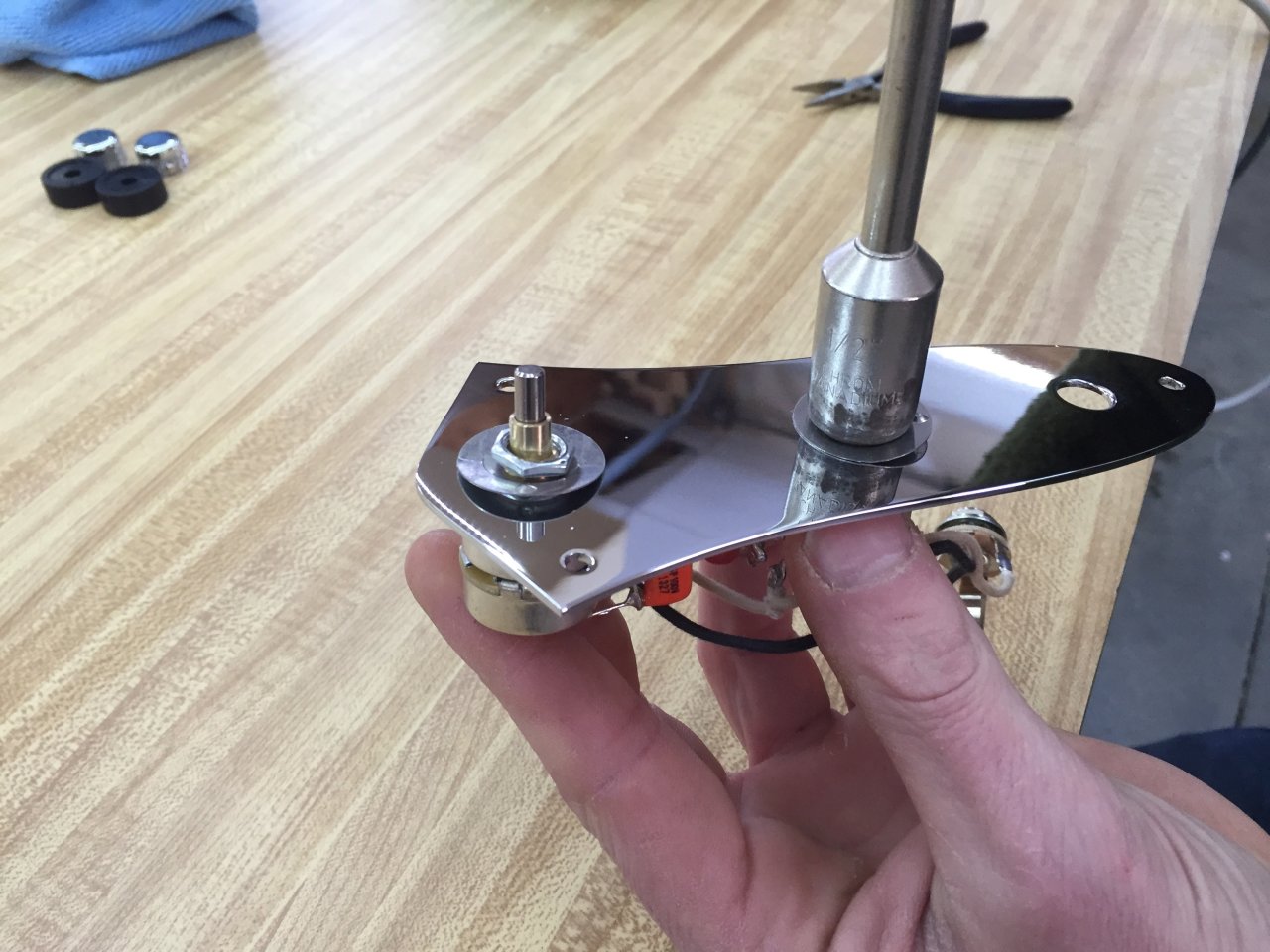

Below: A 1/2″ nut driver being used to tighten the nuts to the washers.

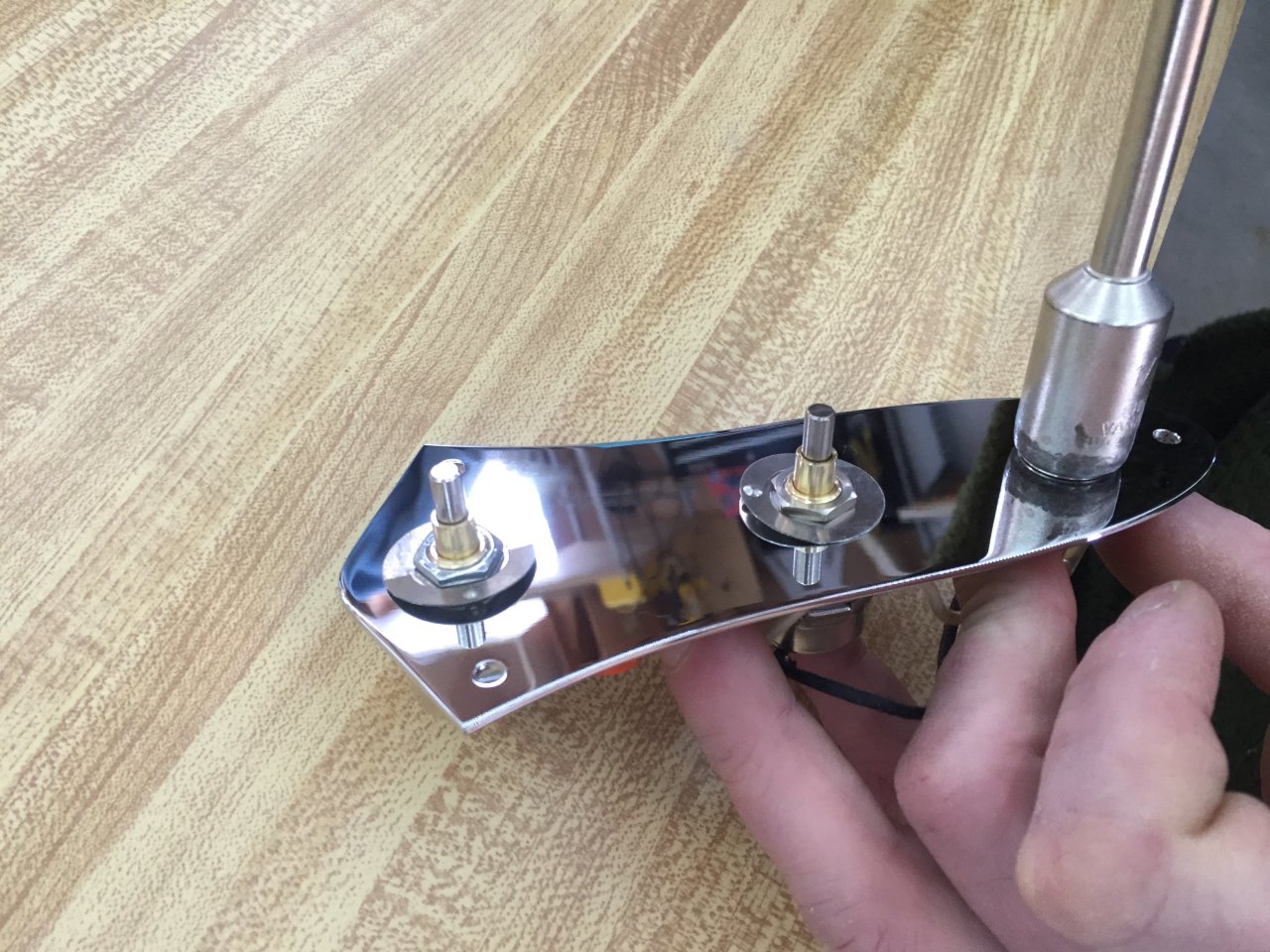

Below: Tightening the other pot to the plate.

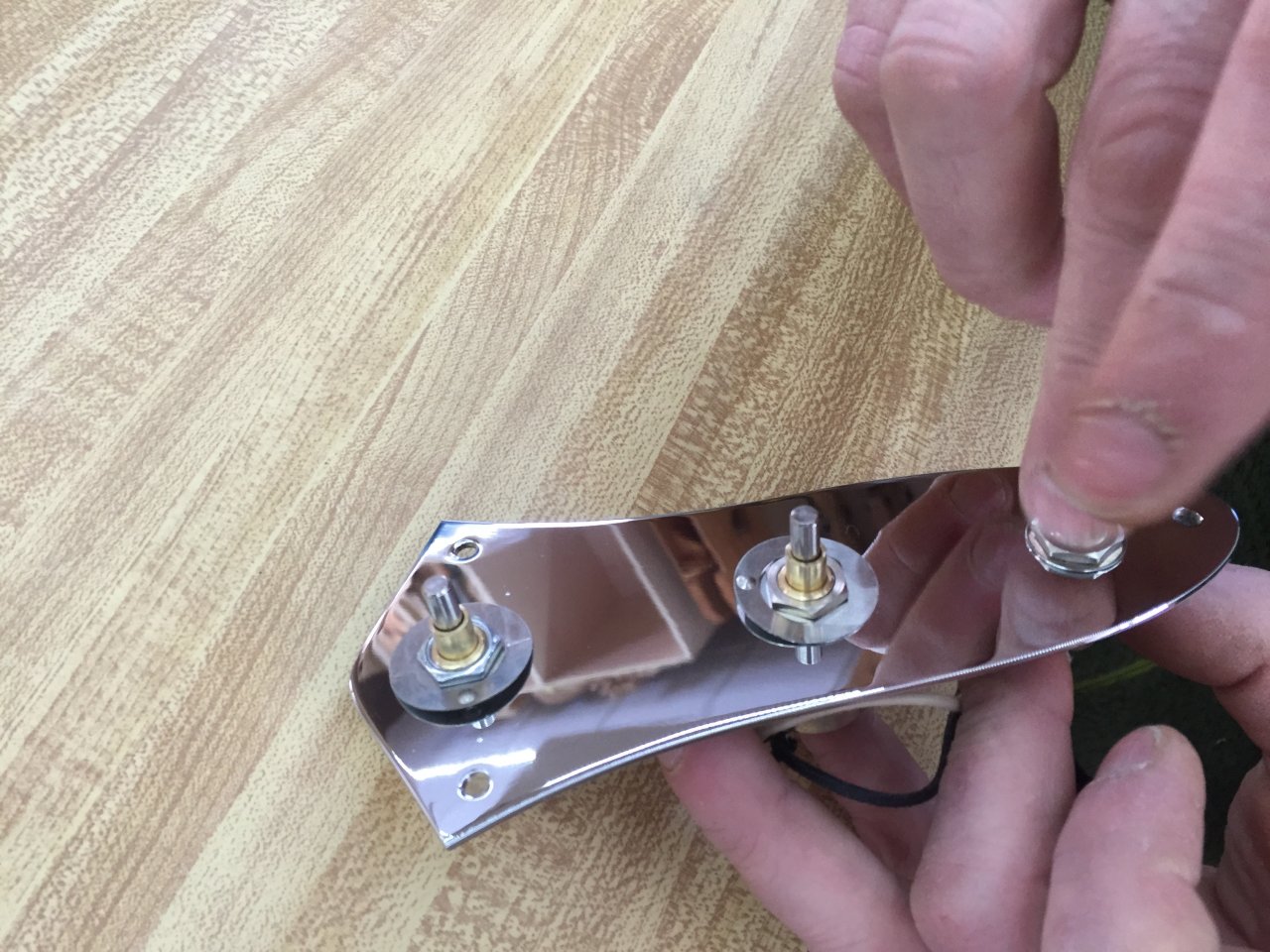

Below: Output jack being held underneath and attaching nut on top of the plate (a washer has already been installed).

Below: Tightening the nut for the output jack.

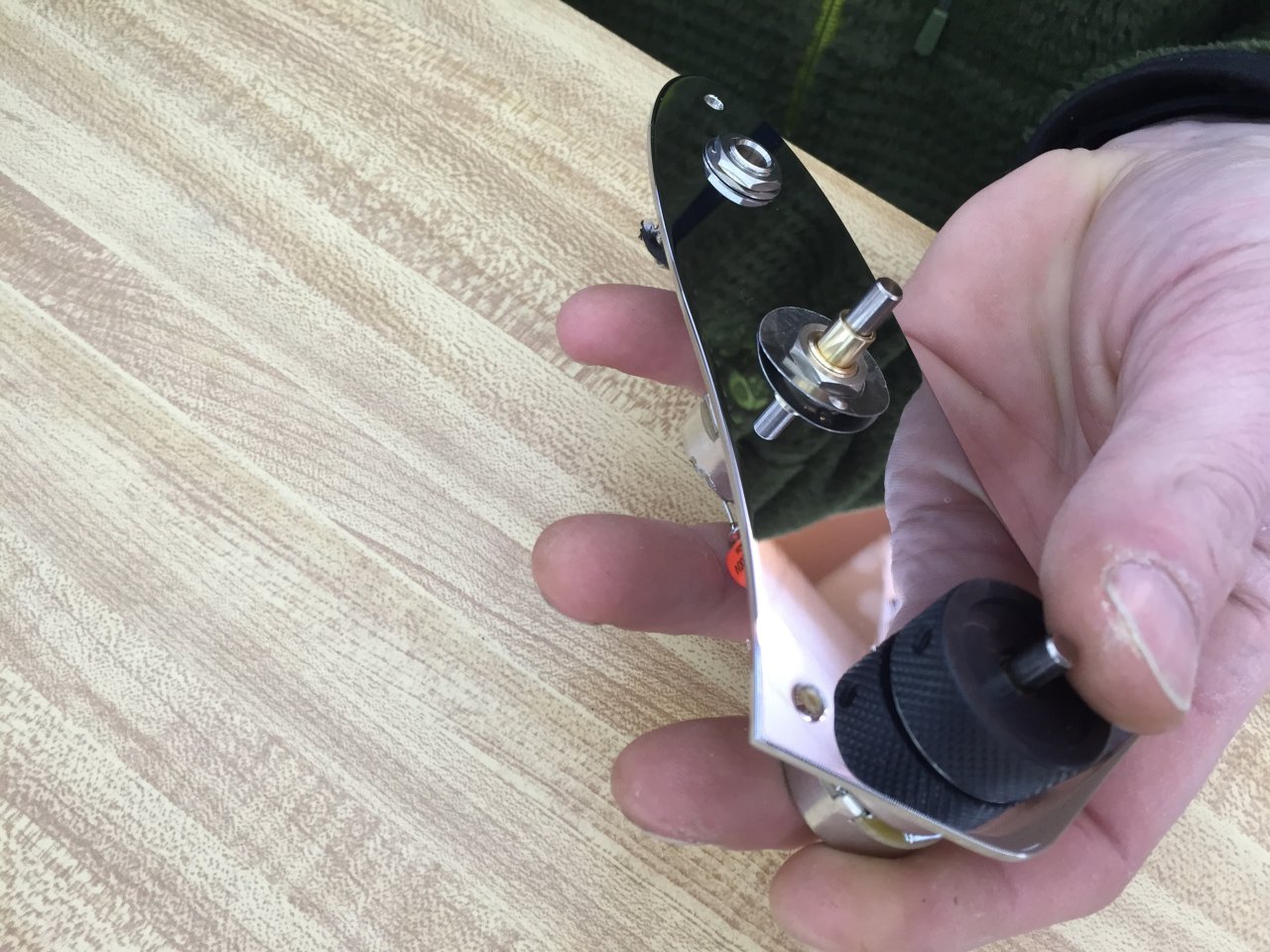

Below: Lower concentric control being installed.

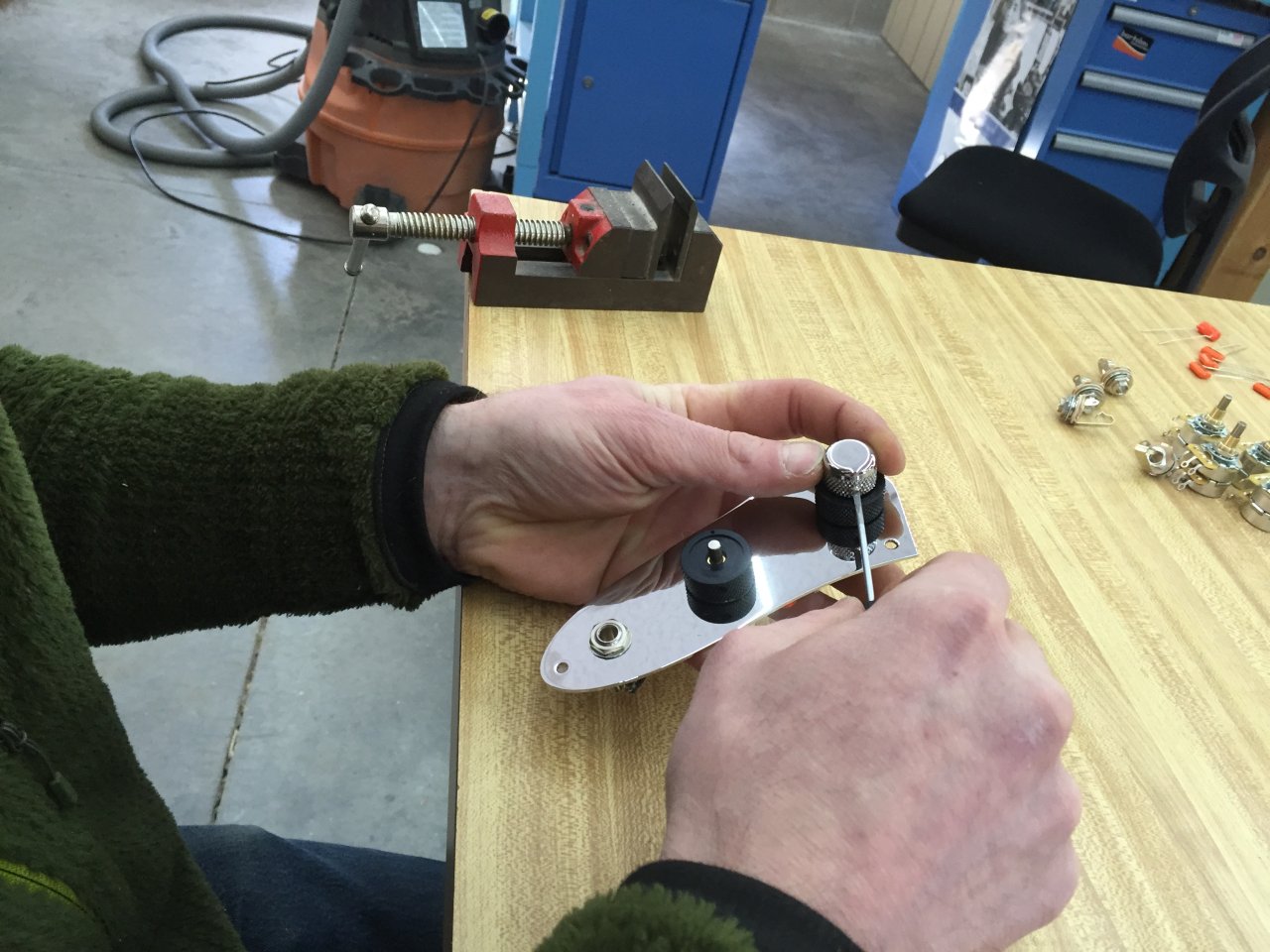

Below: Other lower concentric control being installed.

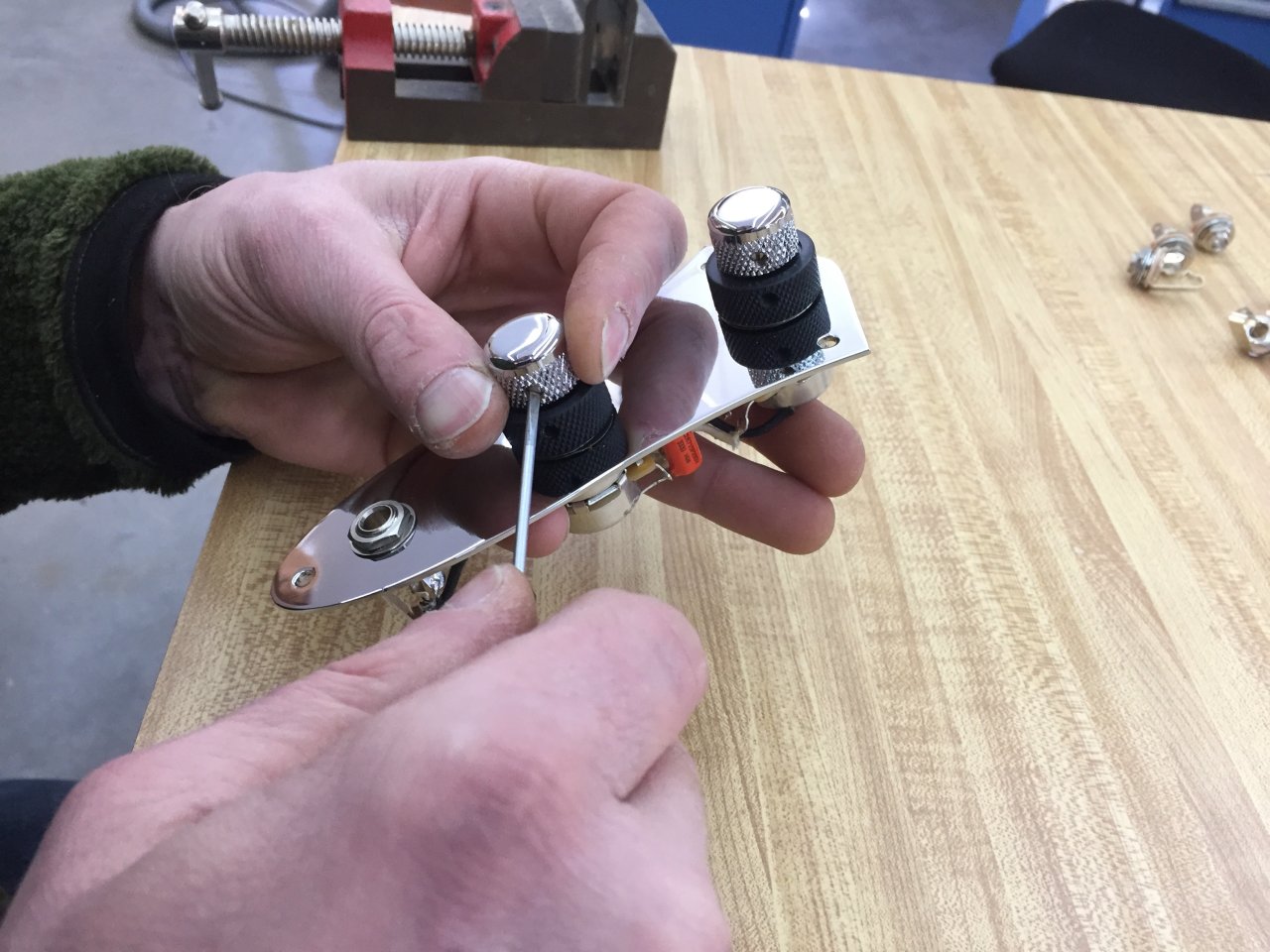

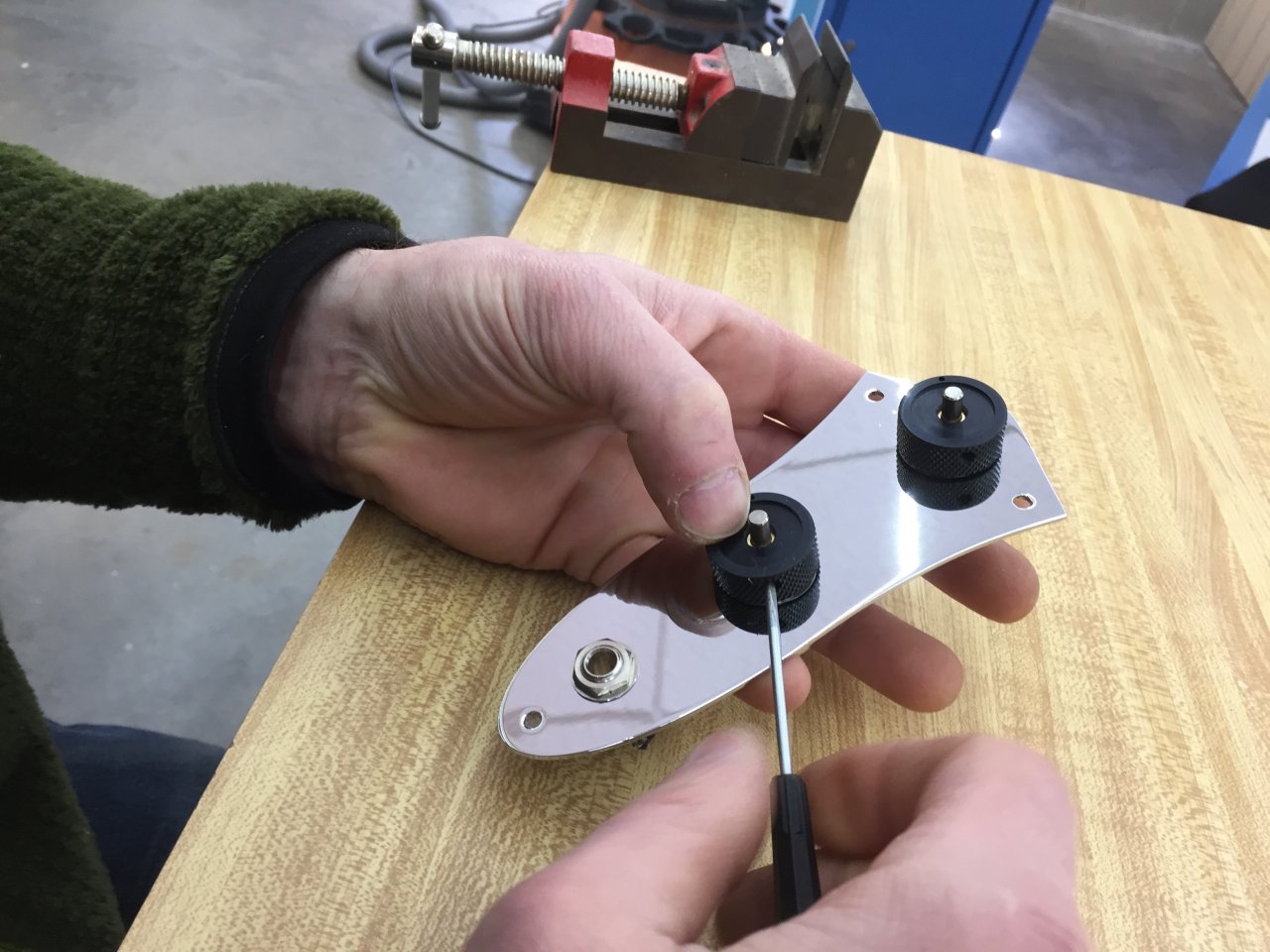

Below: A small slotted head screwdriver being used to tighten and install the upper concentric control.

Below: Installing the other upper concentric control.

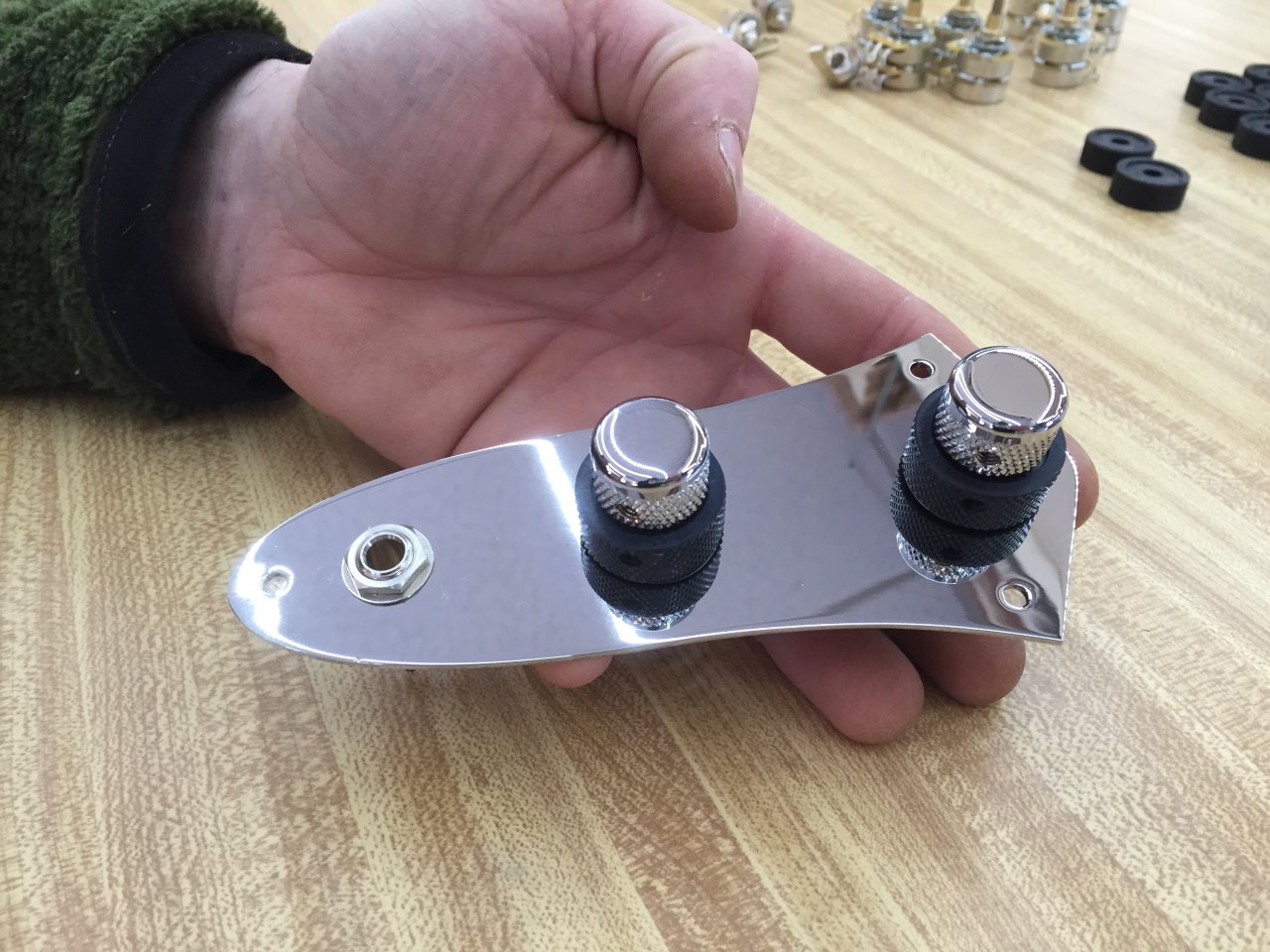

Below: The completed assembly.

Below: The completed assembly, rear.
